Indi-Ron GT 50

How can we help you?

Contact us through our online submission form.

Contact Us

Indi-Ron GT System

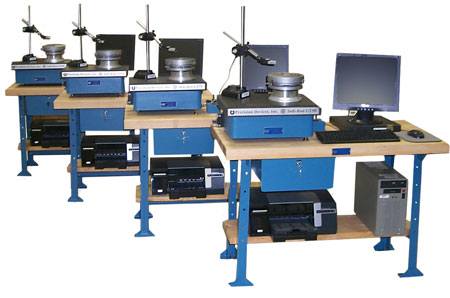

Portable / Bench Top Indi-Ron GT shown with optional table.

  • Roundness (application based) software operated under Microsoft Windows XP with a high resolution flat panel LCD monitor.
  • Gaussian with selectable Undulations per Revolution (UPR) of 1, 1.67, 5, 50, 150, and 1500.
  • Dual Trace Capability.

Components of the system are a portable bench top unit, including precision spindle, mounted on a 16” x 20” granite surface plate, variable speed motor drive, Type CT 8 Centering Table (2-axis non-tilt).

The system’s versatile 18” height stand permits easy measurement of part features, and a high quality granite surface plate provides an accurate datum around an 8” centering table.

Accuracy

Air spindle accuracy of ±3 microinches (±0.0762 micrometer) at worktable level, radially and axially, positive coning error not exceeding 2 microinch/inch (.051 micrometer/cm) above the table.

Powered by PDI's Roundness software the instrument will measure out-of-roundness by four different methods as described by ASME B89 National Standard.

  • Minimum Radial Separation (MRS)
  • Least Squares Center (LSC)
  • Minimum Circumscribed Circle (MCC)
  • Maximum Inscribed Circle (MIC)

Specifications

Surface Plate: Granite, inspection grade, 20” (508mm) by 16” (406mm) deep x 2” (51mm) thick.
Weight: 120 lb (54.4 kg)
Weight Capacity: 50 lb (22.7 kg) balanced load.
Part Size Capacity: To 20” (508 mm) diameter. Length limited only by weight and balance.
Height Stand: 20” (457 mm) freestanding gage stand (standard)
Supply Voltage: 115vac (±10%) 60 Hz (±0.1%)
Ball Spindle Accuracy (optional): Ball Spindle Accuracy (Standard): ±5 microinches (±0.127 micrometer) at worktable level, radially and axially, positive coning error not exceeding 2 microinch/inch (.051 micrometer/cm) above the table.
(standard) Air Spindle Systems Only: Require clean, dry, instrument quality air: oil content not to exceed 25 parts per million, water content less than 10°F (-12°C) dew point at atmospheric pressure, foreign particle size less than one micrometer. Air Consumption: 0.15 scfm to 1.5 scfm depending upon spindle.
Drive System: Gear driven variable speed
Rotation Speed: 1, 2 or 4 RPM (60Hz)
Work Table: Centering Table, 8” (203mm) diameter, with 2-axis mechanical centering adjustment. Optional Spherical Seat Tilt Base, 8” (203mm) diameter, with 2-axis mechanical tilt adjustment.
Input Transducer: T-425 Gage Head, lever type, with 1/16” (1.6mm) diameter carbide ball tip, built-in fine adjustment. Gaging force reversible, adjustable up to 3.0 grams per 0.010” (.025mm) travel. Gaging range ±.
